FEATURES
■ The resistor is used for ac/dc or pulse circuits and high voltage devices.
■ High power and beyond resistance and different size resistance can be negotiation

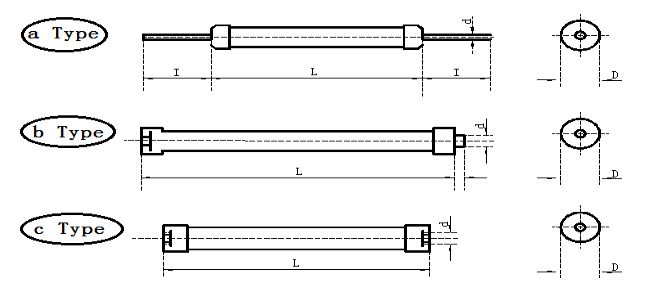

■ a、b、c Structure form
MAIN PARAMETER
|
Type |
Rated power（W） |
Structure form |
Dimensions（mm） |
Resistance range（Ω） |
TCR |
Operating Temperature Range |
Resistance tolerance |
Max working voltage(KV) |
|||
|
L |
D |
I |
d |
||||||||
|
R180-1 |
1 |
a |
30±1 |
9 |
30±1 |
1 |
100
-
1KKM |
≤200 |
-55℃
-
+70℃ |
F（±1％）
G（±2％）
J（±5％）
K（±10％） |
10 |
|
R180-2 |
2、3 |
a |
50±1 |
9 |
30±1 |
1 |
15 |
||||
|
R180-5 |
5 |
a |
100±1 |
9 |
30±1 |
1 |
25 |
||||
|
R180-8 |
8 |
a、b、c |
100±1 |
11 |
30±1 |
1 |
30 |
||||
|
R180-10 |
10 |
a、b、c |
147±1 |
11 |
30±1 |
M4 |
35 |
||||
|
R180-20 |
20 |
b、c |
116±2 |
17 |
|
M6 |
≤400 |
30 |
|||
|
R180-30 |
30 |
b、c |
116±2 |
19 |
|
M6 |
30 |
||||
|
R180-50 |
50 |
b、c |
116±2 |
21 |
|
M6 |
30 |
||||
|
R180-80 |
80 |
b、c |
130±2 |
28 |
|
M6 |
30 |
||||
|
R180-100 |
100 |
b、c |
160±2 |
28 |
|
M6 |
35 |
||||
|
R180-150 |
150 |
b、c |
210±2 |
28 |
|
M6 |
10K |
60 |
|||
|
R180-200 |
200 |
b、c |
260±2 |
28 |
|
M6 |
60 |
||||
|
R180-300 |
300 |
b、c |
310±2 |
33 |
|
M6 |
80 |
||||
