FEATURES
■ High resistance resistors for high voltage circuits.
■ Thin SIP shape.
■ The flame retardant coats corresponding to UL94V-0 are used.
■ Thick film resistors (RuO2) ensure high stabilities in life and change in aging.
■ Products with lead free termination meet EU-RoHS requirements. EU-RoHS regulation is not intended for Pbglass contained in electrode, resistor element and glass.

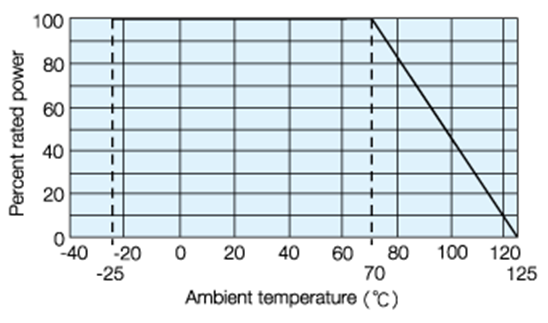

DERATING CURVE
For resistors operated at an ambient temperature of 70oC or above, a power rating shall be derated in accordance with the above derating curve.
MAIN PARAMETER
|
Type |
Rated power（W） |
Resistance range |
Resistance tolerance |
Max working voltage |

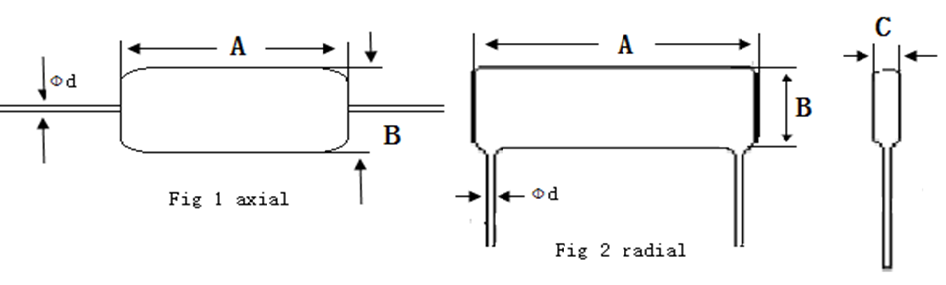

Dimensions（mm） |
Remark |
|||
|
A |
B |
C |
Фd |
||||||
|
8610 |
0.5 |
1M~1000M |
±5% |
1.5 KV |
10 |
5.0 |
2.0 |
0.5 |
Fig 1 |
|
8640 |
1 |
1M~1000M |
26 KV |
40 |
10 |
2.5 |
0.6 |
Fig 2 |
|
|
8660 |
2 |
1M~1000M |
30 KV |
60 |
60 |
3.0 |
0.6 |
Fig 1 |
|
Rated Ambient Temperature ：+70℃
Operating Temperature Range：-55℃～+155℃
Rated voltage = √Power Rating×Resistance value or Max. working voltage, whichever is lower.
ELECTRICAL PERFORMANCE
|
Test Items |
Performance Requirements |
Test Methods |
|
Short Time Overload |
△R≤±（1%R+0.05Ω） |
2.5 times rated voltage、5S |
|
Solderability |
Over 95% of area wire covered with solder |
260±10℃、2±0.5S |
|
Robustness of Terminations |
△R≤±（1%R+0.05Ω） |
Tensile:20N、10±1S Bending:2×90° Torsion:2×180° |
|
Resistance to soldering heat |
△R≤±（1%R+0.05Ω） |
260±10℃、10±1S or 350±5℃ 3.5±0.5S |
|
Rapid change temperature |
△R≤±(1%R+0.05Ω) |
-55±3℃、30min; 155±3℃、30min 5 cycles |
|
Intermittent overload |
△R≤±(5%R+0.1Ω) |
2.5 times of rated voltage for 1S ON,25S OFF;1000 cycles. |
|
Temperature Coefficient |
TCR≤±200PPM/℃ |
Room Temperature +100℃、and keep on 30～40min |
|
Endurance |
△R≤±(5%R+0.1Ω) |
70±2℃、1000h，Rated direct voltage 1.5h ON、0.5h OFF cycles. |
|
Damp Heat Steady State |
△R≤±(5%R+0.1Ω) |
40±2℃、90～95%RH、56 days. |
